Category : Others, Searchlight

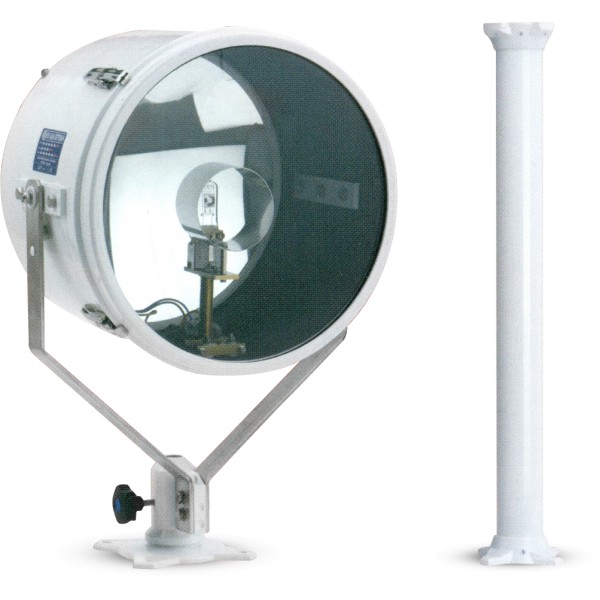

DHR 350 – Deck operated
Application
For the marine industry
Materials
– Housing, chromatted seawater resistant aluminium
– All other materials corrosion resistant and non-magnetic
Finish
UV-resistant powder coating, white RAL 9016
Extension
– Column Ø 90 x 800 mm
– Special dimension on request
Optics
– Hardened glass
– Parabolic mirror reflector Ø 340 mm
Protection class
IP66 with membrane vent
| Type / Art. code | Volt / Watt | Range at 1 lux Divergency | Luminous intensity [cd] | Lamp-holder | kg | |
| 350DS220 | 230 / 1000 | 1104 m | 6,5° x 10° | 1.220.000 | GX 9,5 | 10 |
| 350DS110 | 115 / 1000 | 974 m | 5° x 7° | 950.000 | GX 9,5 | 10 |
| 350DS024 | 24 / 250 | 904 m | 4° x 3,5° | 820.000 | G 6,35 | 10 |
| 35013 | Column Ø 90 x 800 mm | 4,8 | ||||
| Spare parts | Art. code |
| Halogen lamp 230V / 1000W | CP63 |
| Halogen lamp 120V / 1000W | BWN |
| Halogen lamp 24V / 250W | M35-024 |
| Hardened front glass | 35003 |
| Sealing front glass | 35004 |
| Mirror reflector Ø 340 mm | 35005 |
