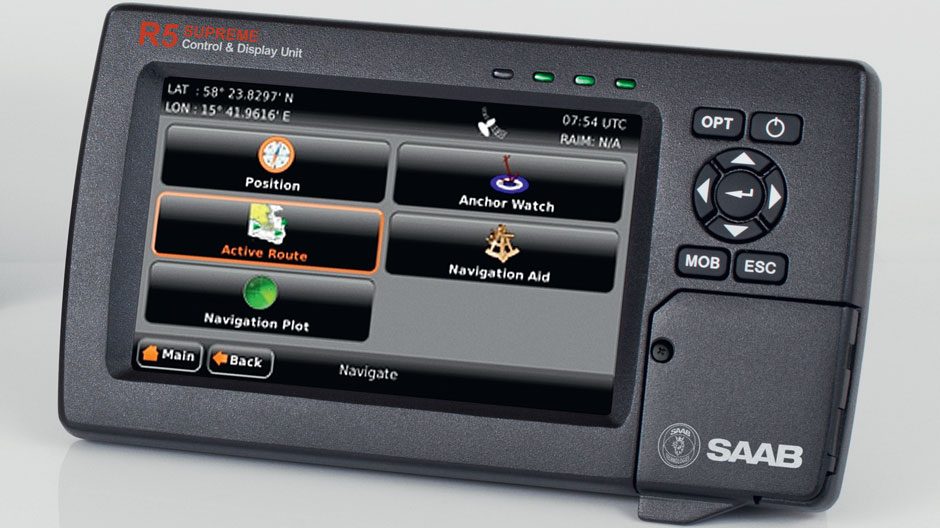

R5 SUPREME NAV GPS/DGSP Navigation system
7″ ultra-bright high contrast colour touch LCD Touch, Keypad or USB keyboard control Display of latitude, longitude, speed over ground and course over ground Capability to handle and store up to 4000 individually named waypoints and up to 100 different routes Man Over Board (MOB) and Event Mark functionality Two trip log counters with indication of average speed and accumulated time during motion Scheduled Alerts, user configurable time alarms and time to ETA alarms
R5 SUPREME GPS/DGPS SYSTEM The R5 SUPREME NAV system provides the user with a flexible, future proof product. The large colour touch-screen display and multitude of interfaces make the system highly appropriate for integration into modern networked bridge solutions.
Overview
Specification
Main features
Download
Overview
GENERAL Waypoints: 4000 Routes: 128 (max 512 waypoints in each route) Functions: Support for multiple displays and redundant systems. Integrity: RAIM and Heartbeat Monitoring Power supply: Sensor; 24 VDC CDU; 12–24 VDC LEDs: Three 3-colour LED:s indicating RAIM and Alarm status. GPS RECEIVER L1, C/A-code with carrier phase smoothing 12 channels (2 channels dedicated to SBAS) DGPS by SBAS or externally input RTCM corrections. Update rate: 1 Hz default, 5 Hz max Position accuracy: GPS*; 5m, DGPS** 1m (2D RMS) Cold start: 1 min typical DGPS BEACON RECEIVER Dual receiver: Manual or Automatic tuning Frequency: 283.5 to 325.0 kHz MSK Bit Rates: 50, 100, 200 bps Cold Start Time: < 1 minute typical Reacquisition: < 2 seconds typical Sensitivity: 25 μV/m for 6 dB SNR @ 200 bps INTERFACE Display Ethernet 10/100 Mbit 3 RS-422 I/O 3 Digital In, 3 Digital Out Pilot Plug USB 2.0 SDHC Reader CAN / NMEA 2000 (option) Speed log output Alarm Binary Out Port Alarm Acknowledge Binary Port DIMENSIONS Control & Display Unit: 255 x 140 x 85 mm / 1.8 kg Navigation Sensor: 128 x 39 x 137 mm / 0.5 kg CABLES Cables used without R5 NAV Junction Box: R5 Power Cable R5 Signal Cable DSUB-Open R4 NAV Sensor Cable Cables used with R5 NAV Junction Box: R5 Power Cable R5 Signal Cable DSUB-DSUB R5 Navigation Sensor Cable Other Cables: R5 Ethernet Cable ENVIRONMENTAL DATA IEC 60945 Operation temperature: –15 °C to +55 °C COMPLIANCE WITH THE FOLLOWING STANDARDS IMO Resolution MSC.112 (73) IMO Resolution MSC.114 (73) IMO Resolution A.694 (17) IMO Resolution MSC.191 (79) IEC 61108-1 Ed. 2.0 (2003) IEC 61108-4 Ed. 4.0 (2004) IEC 60945 Ed. 4.0 (2002) IEC 61162-1 Ed. 4 (2010) IEC 62288 Ed. 1.0 (2008)
